Mirror COB Aluminum PCB

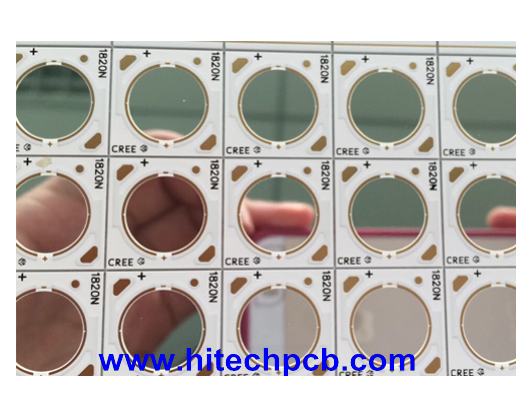

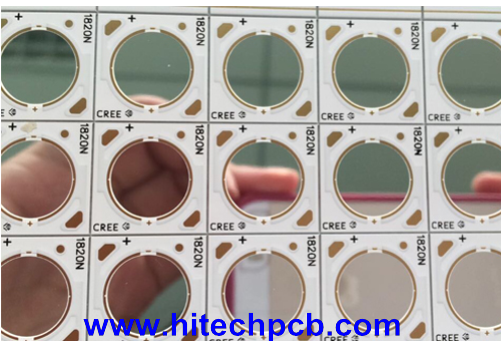

LED Mirror Copper PCB
- Product Details
Name: LED Mirror Copper PCB
Material: Aluminum, 1.0 mm
Laminate: Mirror face Aluminum 98% Reflective Rate + FR4
Copper thickness: 1 oz (35 um)
Surface finishing: Immersion Gold
Color: White solder mask
Color: Black Silkscreen
Min Line Width/Space: 0.3 mm/0.4 mm
Min hole diameter: 0.3 mm
Thermal Conductive: 165 W/m.k Direct Bonded Aluminum
Material from Germany
Reflective Rate: 98%
Certificates: UL, ROHS
Application: LED COB Module
Material: Aluminum, 1.0 mm
Laminate: Mirror face Aluminum 98% Reflective Rate + FR4
Copper thickness: 1 oz (35 um)
Surface finishing: Immersion Gold
Color: White solder mask
Color: Black Silkscreen
Min Line Width/Space: 0.3 mm/0.4 mm
Min hole diameter: 0.3 mm
Thermal Conductive: 165 W/m.k Direct Bonded Aluminum
Material from Germany
Reflective Rate: 98%
Certificates: UL, ROHS
Application: LED COB Module
