Bergquist Metal Core PCB
- Product Details

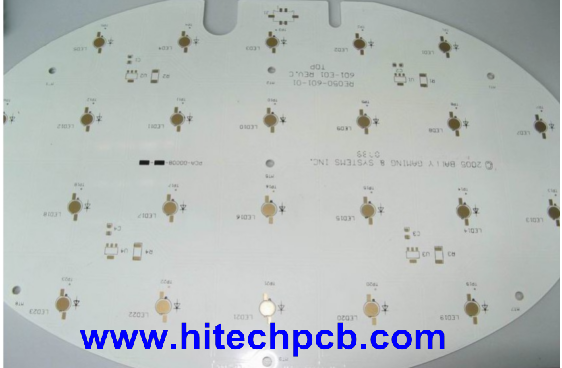

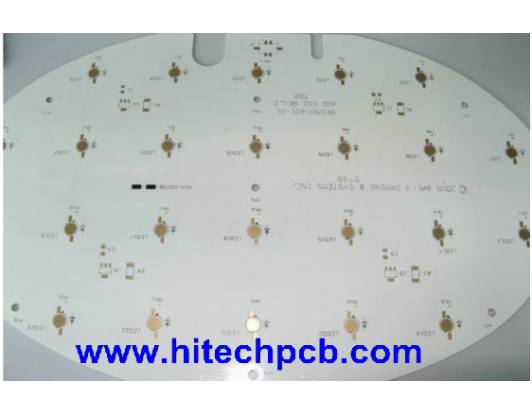

Product Name: Bergquist metal core board (Bergquist Aluminum PCB)
Base Material: Bergquist material metal core pcb
Layers: 1
Thickness: 1.5mm
Copper thickness: 1Oz
plating process: Immersion gold
Description: LED MPCB
Description and Application
Bergquist Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.
It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
